ACCESS CONTROL / Product Details / FR1200


thumbnail 2

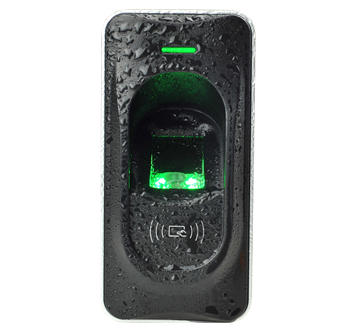

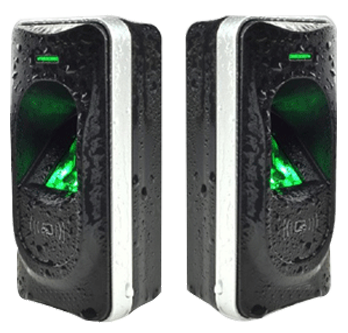

FR1200 Fingerprint & RFID RS485 Slave Reader

FR1200  Datasheet  Datasheet

FR1200, a fingerprint reader with RS 485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.

  1. Can transfer fingerprint template to inBIO controller or F8 series fingerprint access controller through RS485 communication, so the latter is much more stable and secure.
  2. Passed IP65 certification, so it can be applied to outdoor working environment.
  3. Standard 125Khz ID Card module.
  4. Easy to install due to small size and only needs the RS485 communication.
  5. The fingerprint is verified by internal access controller or inBIO controller.
  6. Even if device is destroyed,the relay is on master device, so it can not open door.

 Full Specifications




Small-sized sensor
Communication RS485
Standard ID Card Module


Optional MF Card Module
Voice Prompt Buzzer
Working Voltage 12VDC
Working Temperature 0~ 45°C
Protection Grade IP65
