TS1200

thumbnail 2

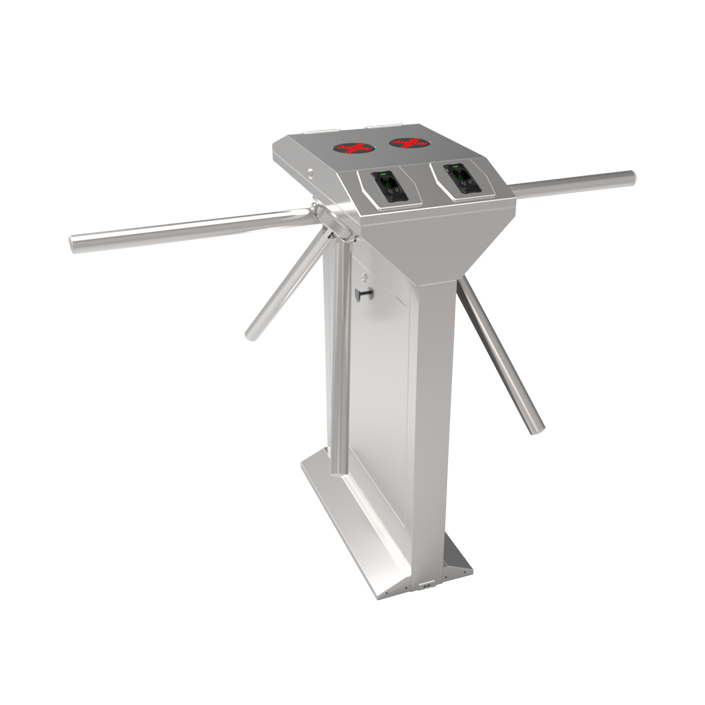

TS1200 Semi-automatic Tripod Turnstiles

TS1200  Datasheet  Datasheet

Tripod turnstiles are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic. The TS1200 series, our stainless steel compact version, offer high operating reliability in a small casework, ideal for sites where space is an issue. The TS1200 series have two passage channels in one casework, it is cost-effective for the application. On receiving a signal from the access control system, or push button, it allows the passage of one person at a time. Passage in both directions is electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage.

Reliability

  1. Alloy steel tripod hub prevents mechanical wear
  2. Casework and tripod arms manufactured in SUS304 stainless steel
  3. Electromagnets for lock are used only when being activated. They are in standby mode when the device is idle.
  4. High quality electrical components

Safety and User-Orientated Design

  1. Drop arm designed for emergency purpose
  2. No exposed screws, safer for the user
  3. Smooth operation designed for mas transit application
  4. The pictogram on the device indicating access permission and direction of movement
  5. Special designed case shape, user-friendly for passenger to punch card or finger.
  6. Anti-tailgate
  7. Well-designed electronic protection cover. Neat wiring inside.

Easy Integration

  1. Flexible reader installation plate. Customers can easily integrate with third party reader
  2. Standard electrical interface for third party device.
  3. By using compact mechanism, the turnstile has more space inside for integration


 Full Specifications

Power Supply

AC 220V/110V, 50/60Hz
Operating Temperature -28 °C- 60 °C
Operating Humidity 5%-85%
Working Environment Indoor/Outdoor(shelter)
Rated Power 60W
Flow Rate 25- 48 passage/minute
Ingress Protection IP54
Casework Material SUS304
Pictogram Indication Yes
Control System Input controlled by dry contact
Emergency Button Input Yes
Dimension 60*98*33(CM) + arm length 50CM
Package Dimension 73*108*45(CM)
Net Weight 55KG
Gross Weight with Package 63KG
Optional Function Alternative Material or shape, third-party access control integration,  ticket system integration, passage counter
