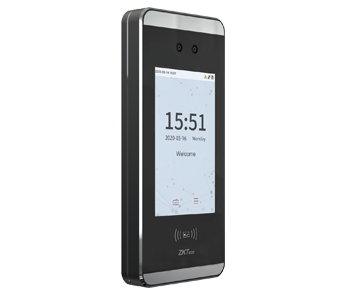

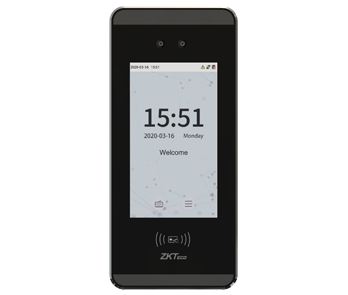

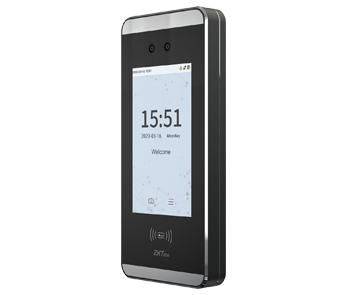

Mini-AC-Plus Visible Light Facial Recognition

Mini-AC-Plus  Datasheet  Datasheet

Recognition distance up to 2m long and extra wide angle recognition The recognition distance has been greatly extended up to 2 meters long, which significantly improves the maximum traffic rate. While most of the algorithms only support 15-degree angle facial recognition, ZKTeco supports 30-degree angle facial recognition.

  1. Visible Light Facial Recognition
  2. Anti-spoofing algorithm against print attack(laser, color, and B/W photos), videos attack
    and 3D mask attack
  3. Multiple Verfications: Face / Palm / Card / Password
  4. Multiple card modules: 125KHz ID card(EM)/ 13.56MHz IC card (MF)
  5. 3,000 face templates capacity

 Full Specifications


5-inch touch screen

Face Capacity 3,000
Palm Capacity 1,500 (optional)

ID Card Capacity




Operation System Linux


TCP/IP, WIFI(Optional), Wiegand input/output, RS485

Standard Functions

ID Card, ADMS, T9 Input, DST, Camera, 9 digit user ID, Acess Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes


900MHZ Dual Core CPU Memory 512MB RAM / 8G ROM 2MP WDR Low Light Camera Adjustable Light Brightness LED

Optional Functions

13.56MHz IC Card / WiFi

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input

Face Recongntion Speed ≤1s

Working Temp.

-10°C - 45°C

Power Supply

12V 3A
